DERYA HPP

(Under Construction)


Derya HPP is located in the Black Sea Region, close the city of Gumushane/Torul, in order to utilize the energy potential of Harşit River.

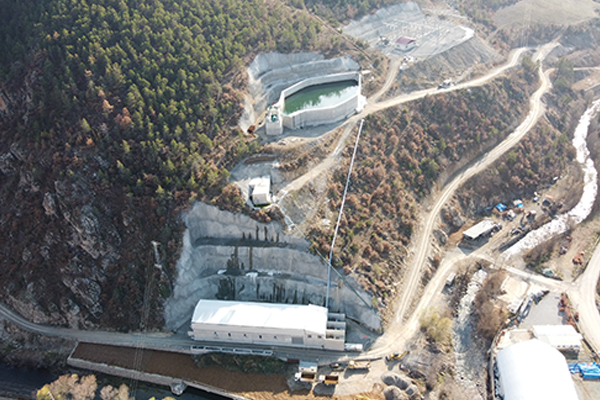

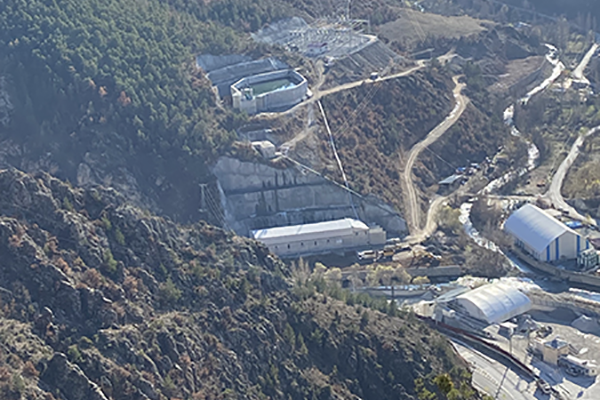

The project consists of regulator, settling basin, transmission tunnel, transmission channel, forebay pool, penstock, power house, tailwater channel and power transmission line.

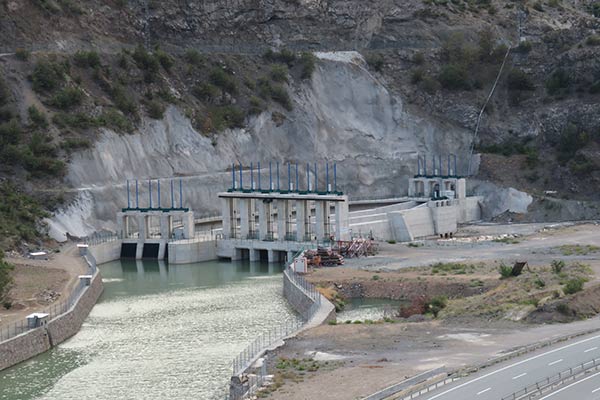

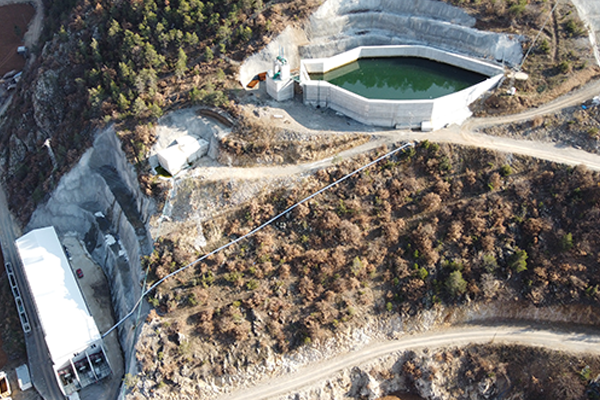

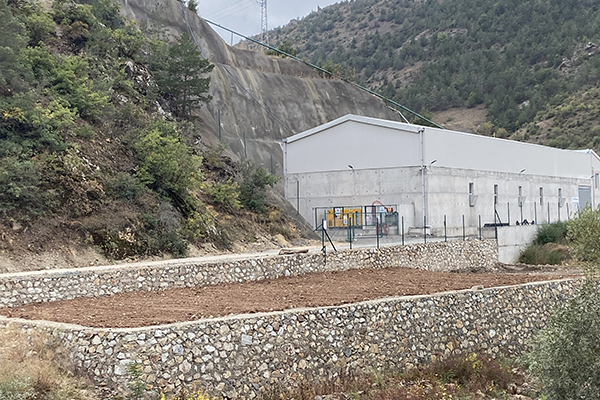

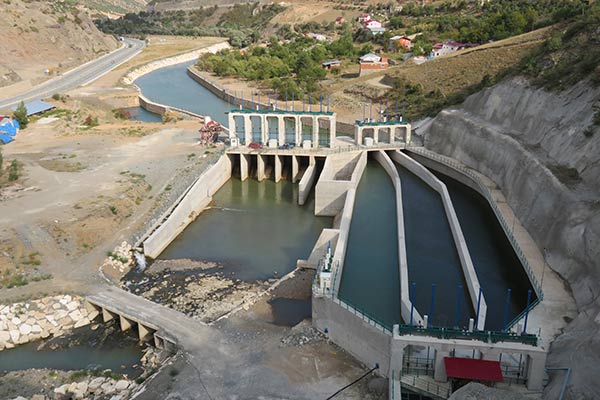

The water collected with regulator on the Harşit River at base elevation of 981,20 m and thalweg elevation of 985,00 m will be transferred through a 5.668 m long and 5,1 m wide horseshoe transmission tunnel to a forebay pool. After the forebay pool, the water will be directed to the 95 m long, 2,95 m dia penstock with a 34,15 m³/s flow, and finally to the horizontal axis francis type turbines at the 931,00 m tailwater elevation level power house.

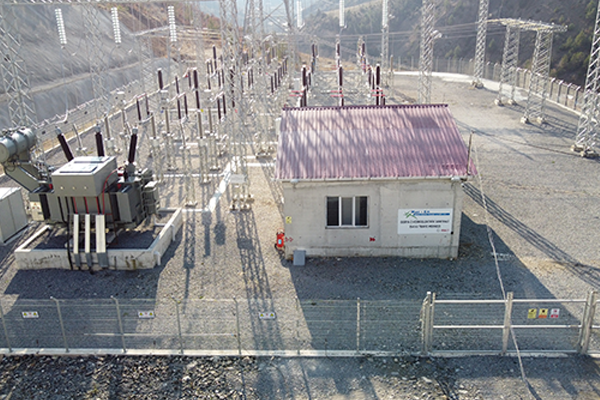

Produced energy will be transmitted by the 5,0 km long power transmission lines of 33 kV capacity to the interconnected power system with Torul HPP electrical switch plant.






FACTS


Rate of Flow Gross Height Installed Capacity Firm Energy
34,15 m³/s 61,00 m 17,61 MW 1,03 GWh

Secondary Energy Total Energy
46,41 GWh 47,44 GWh
